POLE PULLERS
Pulling poles is a tough job that just got easier.

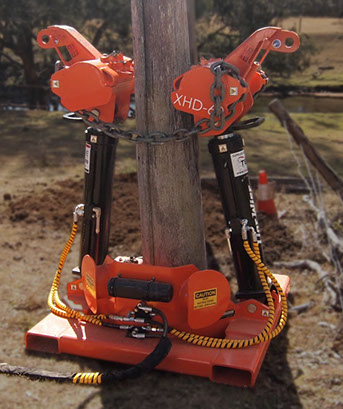

PP-60-XHD
The PP-60-XHD pole puller delivers more than 125,000 pounds of pulling force and can handle poles up to 26 inches in diameter. The 1,500-pound unit utilizes two hydraulic cylinders, each featuring a cam action head with beveled teeth to effectively grip the pole. A set of chains holds the cam heads together during the pulling process. As the cylinders push upward, the cam heads rotate, the teeth dig into the pole and lift it out. The cylinder stroke is 24 inches — compared to 15 inches on other pullers — enabling crews to efficiently pull out a pole in fewer cycles. Additionally, the dual cylinder design causes less damage to poles than other pullers, allowing some poles to be re-used.
The PP-60-XHD can be set up by one person and grips the pole with cam-action heads. It features built-in fork pockets, lifting points and high strength alloy chains. The PP-60-XHD may be used with open-center or closed-center hydraulic systems.
The PP-60-XHD is operated using the controls on a hydraulic power source such as a skid steer, and features multiple lifting points for easy positioning by crane or skid steer.
Specifications:
Performance:
Maximum Pole Size:
Cylinder:
Head:
Base Weldment:
Lifting Points:
Pull (lb.) at 2,250 psi 125,000.
26’’ Diameter, 81’’ Circumference.
Stroke 24″, Bore 6″, Rod 4″.
Cam action head has beveled teeth to provide a better grip.
Chain-(2) 3/4’’ x 4’’ x 5’ long on the drum head.
Exterior 46″ x 46″, Interior 28″ x 28″, Weight 1,500 lbs.
2 chains on the head, Forklift pockets – 3 1/4’’ x 7 1/4’’ x 46’’ long.
We can also provide any of these attachments for an additional fee.

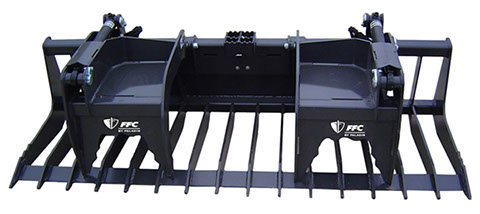

Brush and Scrap Grapple
The FFC Brush and Scrap Grapple's patented design withstands the demands of work in scrap handling, recycling, and other tough applications. The design also prevents roll-back interference.
A pilot operated check valve allows independent movement of the grapple arms which facilitates the stabilization of irregular loads that are common in some applications.
Erskine Brush Mower
This rigid 72" brush mower makes mowing easy with its durable, yet lightweight design. This mower is able to withstand the rigors of property maintenance with it's 7 gauge and 1/4" steel deck. Small trees, brush, weeds and grass are all on the menu for this hungry mower.
