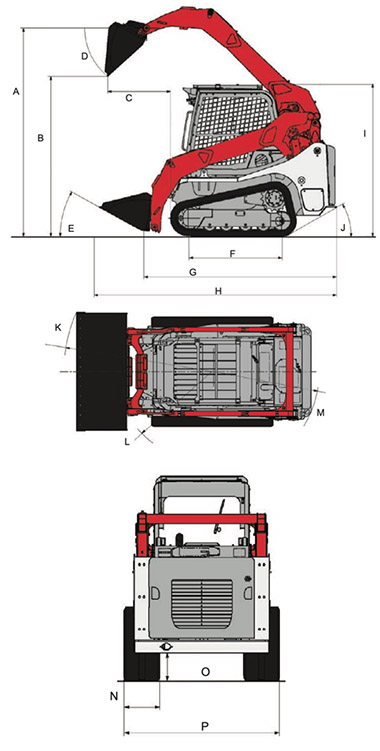

MACHINE DIMENSIONS

A  Maximum Lift Height to Bucket Pin:  10 ft 4.8 in (3,169 mm)

B  Dump Height Fully Raised:  7 ft 11.9 in (2,435 mm)

C  Dump Reach Fully Raised:  3 ft 1.4 in (950 mm)

D  Dump Angle:  40°

E  Rollback Angle:  30°

F  Track Ground Contact Length:  4 ft 7.9 in (1,419 mm)

G  Machine Length:  9 ft 7.2 in (2,925 mm)

H  Transport Length:  12 ft 1 in (3,680 mm)

I  Transport Height:  7 ft 5.4 in (2,270 mm)

J  Departure Angle:  30°

K  Clearance Circle with Bucket:  7 ft 8.5 in (2,350 mm)

L  Clearance Circle without Bucket:  5 ft (1,535 mm)

M  Clearance Circle Rear:  5 ft 5.2 in (1,655 mm)

N  Track Width:  15.7 in (400 mm)

O  Ground Clearance:  12.6 in (320 mm)

P  Overall Width without Bucket:  5 ft 8.5 in (1,740 mm)





OPERATING PERFORMANCE

with counter weight option

Operating Weight - Canopy:  9,950 lbs (4,515 kg)

Operating Weight - Cab:  10,270 lbs (4,660 kg)

Tipping Load:  7,765 lbs (3,522 kg)

Rated Operating Capacity:  2,718 lbs (1,233 kg)

    SAE J818*

Operating Load at 50% of Tipping Load:  3,882 lbs (1,761 kg)

Bucket Breakout Force:  6,520 lbs (2,960 kg)

Lift Arm Breakout Force:  5,400 lbs (2,450 kg)

Traction Force:  9,730 lbs (4,410 kg)

Ground Pressure - Canopy:  4.9 psi (34.3 kPa)

Ground Pressure - Cab:  5.1 psi (35.4 kPa)

Travel Speed - Low:  4.8 mph (7.7 km/hr)

Travel Speed - High:  7.0 mph (11.3 km/hr)



*Operating capacity of compact track loaders is rated according to SAE J818 at no more than 35% of the tipping load.



HYDRAULIC SYSTEM

Auxiliary Flow - Primary Circuit:  18.8 gpm (71.2 Lpm)

Auxiliary Flow - High Flow (optional):  32.8 gpm (124 Lpm)

Hydraulic System Pressure:  3,481 psi (24 MPa)



ENGINE

Make/Model:  Kubota V3307CR-TE4B

Engine Displacement:  203 cu in (3.3 L)

Horsepower @ 2,600 rpm:  74.3 hp (55.4 kW)

Maximum Torque @ 1,500 rpm:  195 ft-lb (265 Nm)



FLUID CAPACITIES

Engine Lubrication:  11.8 qt (11.2 L)

Cooling System:  15.9 qt (15 L)

Fuel Tank Capacity:  21.5 gal (81 L)

Fuel Consumption (65% full load):  2.7 gal/hr (10.3 L/hr)

Hydraulic Reservoir Capacity:  9.5 gal (36 L)

Hydraulic System Capacity:  17.2 gal (65 L)
