TL12V-2 Specs



OPERATING PERFORMANCE

Operating Weight - Canopy:  5,835 kg

Operating Weight - Cab:  5,985 kg

Tipping Load:  5,325 kg

Rated Operating Capacity:  1,865 kg

    ISO 14397-1 @ 35%*

Operating Load at 50% of Tipping Load:  2,663 kg

Bucket Breakout Force:  35 kN

Lift Arm Breakout Force:  31.6 kN

Traction Force:  62.3 kN

Ground Pressure - Canopy:  33.4 kPa

Ground Pressure - Cab:  34.3 kPa

Travel Speed - Low:  8.1 km/h

Travel Speed - High:  11.8 km/h



*Rated Operating Capacity for compact track loaders is rated according to ISO 14397-1 at no more than 35% of tipping load.



HYDRAULIC SYSTEM

Auxiliary Flow - Primary Circuit:  88 L/min

Auxiliary Flow - High Flow:  153 L/min

Auxiliary Flow - 2nd Circuit (optional):  88 L/min

Hydraulic System Pressure:  24 MPa



ENGINE

Make/Model:  Kubota V3800

Engine Displacement:  3,769 ml

Rated Output (ISO 14396):  81.8 kW / 2,400 min -1

Maximum Torque:  379.3 Nm / 1,500 min -1



FLUID CAPACITIES

Engine Lubrication:  13.2 L

Cooling System:  18 L

Fuel Tank Capacity:  119.5 L

Hydraulic Reservoir Capacity:  50 L

Hydraulic System Capacity:  94 L

DEF Tank Capacity:  18 L

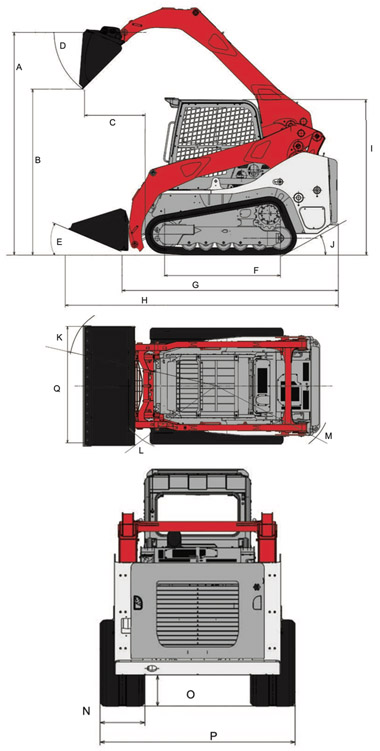

MACHINE DIMENSIONS

A  Maximum Lift Height to Bucket Pin:  3,300 mm

B  Dump Height Fully Raised:  2,460 mm

C  Dump Reach Fully Raised:  925 mm

D  Dump Angle:  45°

E  Rollback Angle:  30°

F  Track Base:  1,715 mm

G  Machine Length:  3,205 mm

H  Transport Length:  4,045 mm

I  Transport Height:  2,330 mm. With Roof Guard: 2,380 mm

J  Departure Angle:  30°

K  Clearance Circle with Bucket:  2,505 mm

L  Clearance Circle without Bucket:  1,610 mm

M  Clearance Circle Rear:  1,850 mm

N  Track Width:  450 mm

O  Ground Clearance:  320 mm

P  Overall Width without Bucket:  1,960 mm

Q  Bucket Width:  2,030 mm



TL12V-2 FEATURES

GIVE US A CALL TODAY,

AND WE'LL HOOK YOU UP!

(618) 322-3436

ENGINE

• EU Stage V / EPA Tier 4 Emission Compliant

• Turbocharged and Intercooled

• DOC+DPF+SCR Exhaust After Treatment

• Active Power Control Power Management System

• ECO Modes

• Foot Throttle Control

• Automatic Fuel Bleed System

• Extended Life Coolant

• High Capacity Radiator, Hydraulic Oil Cooler and Intercooler Mounted Side-by-Side on Swing Out Frame

• Double Element, Air Cleaner



ELECTRICAL

• 12 volt System with 80 amp Alternator

• Heavy Duty, Quick Access Battery

• LED Work Lights, Front and Rear

• 5.7” Color Multi-Informational Display with Rear View Camera

• Sealed Rocker Switches

• Back-up Alarm

• Horn

• TFM (Takeuchi Fleet Management; GPS)*



* Functions may not be available in all countries, so please consult your Takeuchi dealer for details.



UNDERCARRIAGE AND FRAME

• 450 mm Quiet Track Design with Flotation Tread

• Long Track Frame

• Fully Welded Frame with Integrated Cross Members

• Rear Bumper Integrated into Frame

• Front and Rear Tie-Down and Lift Points

• Double Reduction Planetary Track Drives

• 2-Speed Travel

OPERATOR'S STATION

• Tilt-up Operator’s Station

• Deluxe High Back Adjustable Suspension Seat

• Rear Pivoting Seat Bar with Integrated Arm Rests

• Retractable 2” Seat Belt

• ROPS/FOPS Level I

• FOPS Level II Roof Guard Kit (optional)

• Polycarbonate Front Door (Cab optional)*

• Pressurized Cab with Roll-up Door, Air Conditioning, Heat, Defrost, Front Wiper and AM/FM/MP3 Radio (Cab Only)

• Rear Wiper (Cab Standard Equipment in Europe Only)



HYDRAULIC & WORKING EQUIPMENT

• High Lift Vertical Arm Design

• Lower Front Cross Member

• Cushioned Arm Cylinders

• Arm Float with Detent

• Hydraulic Joysticks Controls

• Proportional Auxiliary Controls with Detent

• Pressure Relieving Flat Faced Coupler Body

• Hydraulic Self Leveling (ON/OFF)

• Mechanical Quick Hitch

• 14-Pin Connector with Push Button Control (optional)

• Hydraulic Quick Hitch (optional)

• High Flow Auxiliary Hydraulics 153.0 L/min

• Secondary Auxiliary Circuit 88.0 L/min (optional)

• Ride Control

• Control Pattern Change Valve (ISO or H)

• Manual Parking Brake (optional)
