Boom Lifts

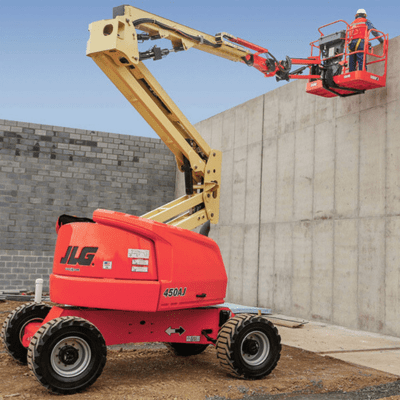

450AJ
Articulating Boom Lift with Sky Power

Download Specs

The 450AJ will allow you to start work quicker with it’s industry-leading elevation time. You’ll be able to carry more tools and materials with the 550 lb basket weight capacity. Increase your work envelope with more horizontal reach.

Key Specs

  • Platform Height: 45 ft / 13.72
  • Platform Capacity – Unrestricted: 550 lb / 249.48 kg
  • Horizontal Outreach: 25 ft / 7.62 m
  • The 450AJ features an improved multifunction capability which increases productivity.

Standard Features

  • AC power cable to Platform
  • 180 degree Powered Platform Rotator
  • Lifting/Tie Down Lugs
  • Oscillating Front Axle
  • Hydrostatic Drive Transmission
  • Motion Alarm
  • Platform Tool Tray

Performance

  • Working Height: 15.77 m
  • Working Outreach: 8.27 m
  • Up and Over Height: 7.3 m
  • Swing: 355 degrees non-continuous
  • Platform Capacity: 250 kg
  • Platform Size: 0.76 x 1.83 m
  • Platform Rotator: 180 degrees
  • Jib: 1.24 m
  • Range of Articulation: 144 degrees
  • Weight 1/2: 6,495 kg
  • Drive Speed: 6.8 km/h
  • Gradeability: 45%
  • Axle Oscillation: 10 cm
  • Turning Radius: Inside: 2.06 m | Outside: 4.78 m
